Canon EOS 5
Info from Wikipedia, the free encyclopedia

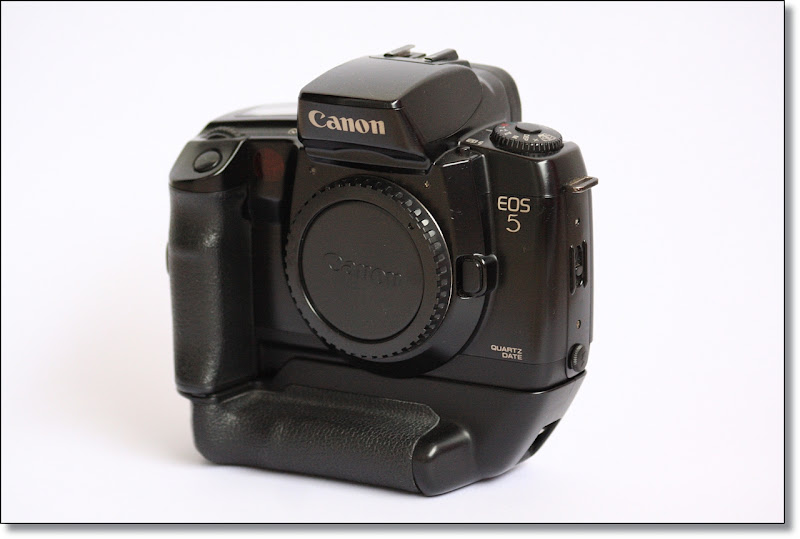

The Canon EOS 5 (sold as the EOS A2 and A2e in the USA) is a semi-professional autofocus, autoexposure 35 mm SLR film camera. It was sold from November 1992 onwards, and was replaced in late 1998 by the Canon EOS 3.[1] As part of the EOS line of cameras, the 5/A2/A2e utilized Canon's EF bayonet lens mount, first introduced in 1987.
The 5/A2/A2e featured a built-in zoom flash, fast motor drives and several pre-set autoexposure modes. Although marketed towards the "prosumer" user, the 5/A2/A2e were popular among professional photographers. The camera was powered by a 6 volt lithium 2CR5 battery, or, with the optional Canon BP-5 Battery Pack, could be powered by D batteries attached to the belt of the user. The Canon VG-10 Vertical Grip added a shutter release, control wheel, AE Lock button and Focus Point Selection button to the bottom of the camera for portrait orientation use, but did not add AA batteries as a power source.
The camera had many operational modes available, selected by the dial on the left-hand side of the camera. These modes selected whether the exposure settings were set automatically, semiautomatically or fully manually. This dial also doubled as an on/off switch.
The Canon EOS 5/A2/A2e had three built-in metering modes; Evaluative, center-weight average and spot. These were user-selectable by means of a button on the back of the camera and the command dial.
The EOS 5/A2e featured eye-controlled focusing, which allowed the user to select from one of five focus points by looking at it through the viewfinder. At the time, this feature was unique to Canon. The A2 had the same five focus points, but they could only be selected manually. Although the EOS 5 had an optional vertical grip, the VG-10, the eye-controlled focussing feature only worked when the camera was held in horizonal orientation.
Peculiar to the Canon EOS line of cameras is the tendency of the dials to change function based on user mode. The 5/A2/A2e has two dials to control exposure, one over the shutter button and one on the back of the camera. The dial above the shutter button will adjust the shutter speed in shutter priority Tv/Time Variance mode, but in aperture priority Av/Aperture Variance mode this same dial will adjust the lens aperture. In full manual mode, the dial above the shutter reverts to adjusting the shutter speed, and the back dial controls the aperture. This is in contrast to other camera manufacturers who keep dials down to a single function. Custom functions allow the photographer to change this behavior so that the shutter and aperture controls are always linked to the same dials no matter which mode the camera is in.
At the time of the camera's production, there was a U.S. patent on the use of a digital scale to show under- or over-exposure in a metered-manual SLR. Canon did not want to pay the patent holder, and therefore omitted the -2/+2 (in half-stops) scale in the A2/A2e, leaving just an over or under indication. The European/Japanese market EOS 5 had the scale and on account of this many American photographers preferred the imported model. This is a firmware difference only, and there is at least one third-party firm which will install EOS 5 firmware on an A2/A2e, thereby adding this scale.
The 5/A2/A2e featured a built-in zoom flash, fast motor drives and several pre-set autoexposure modes. Although marketed towards the "prosumer" user, the 5/A2/A2e were popular among professional photographers. The camera was powered by a 6 volt lithium 2CR5 battery, or, with the optional Canon BP-5 Battery Pack, could be powered by D batteries attached to the belt of the user. The Canon VG-10 Vertical Grip added a shutter release, control wheel, AE Lock button and Focus Point Selection button to the bottom of the camera for portrait orientation use, but did not add AA batteries as a power source.
The camera had many operational modes available, selected by the dial on the left-hand side of the camera. These modes selected whether the exposure settings were set automatically, semiautomatically or fully manually. This dial also doubled as an on/off switch.
The Canon EOS 5/A2/A2e had three built-in metering modes; Evaluative, center-weight average and spot. These were user-selectable by means of a button on the back of the camera and the command dial.
The EOS 5/A2e featured eye-controlled focusing, which allowed the user to select from one of five focus points by looking at it through the viewfinder. At the time, this feature was unique to Canon. The A2 had the same five focus points, but they could only be selected manually. Although the EOS 5 had an optional vertical grip, the VG-10, the eye-controlled focussing feature only worked when the camera was held in horizonal orientation.
Peculiar to the Canon EOS line of cameras is the tendency of the dials to change function based on user mode. The 5/A2/A2e has two dials to control exposure, one over the shutter button and one on the back of the camera. The dial above the shutter button will adjust the shutter speed in shutter priority Tv/Time Variance mode, but in aperture priority Av/Aperture Variance mode this same dial will adjust the lens aperture. In full manual mode, the dial above the shutter reverts to adjusting the shutter speed, and the back dial controls the aperture. This is in contrast to other camera manufacturers who keep dials down to a single function. Custom functions allow the photographer to change this behavior so that the shutter and aperture controls are always linked to the same dials no matter which mode the camera is in.
At the time of the camera's production, there was a U.S. patent on the use of a digital scale to show under- or over-exposure in a metered-manual SLR. Canon did not want to pay the patent holder, and therefore omitted the -2/+2 (in half-stops) scale in the A2/A2e, leaving just an over or under indication. The European/Japanese market EOS 5 had the scale and on account of this many American photographers preferred the imported model. This is a firmware difference only, and there is at least one third-party firm which will install EOS 5 firmware on an A2/A2e, thereby adding this scale.
